Dyness 16kW Lithium Battery

The Powerhouse of Energy Storage

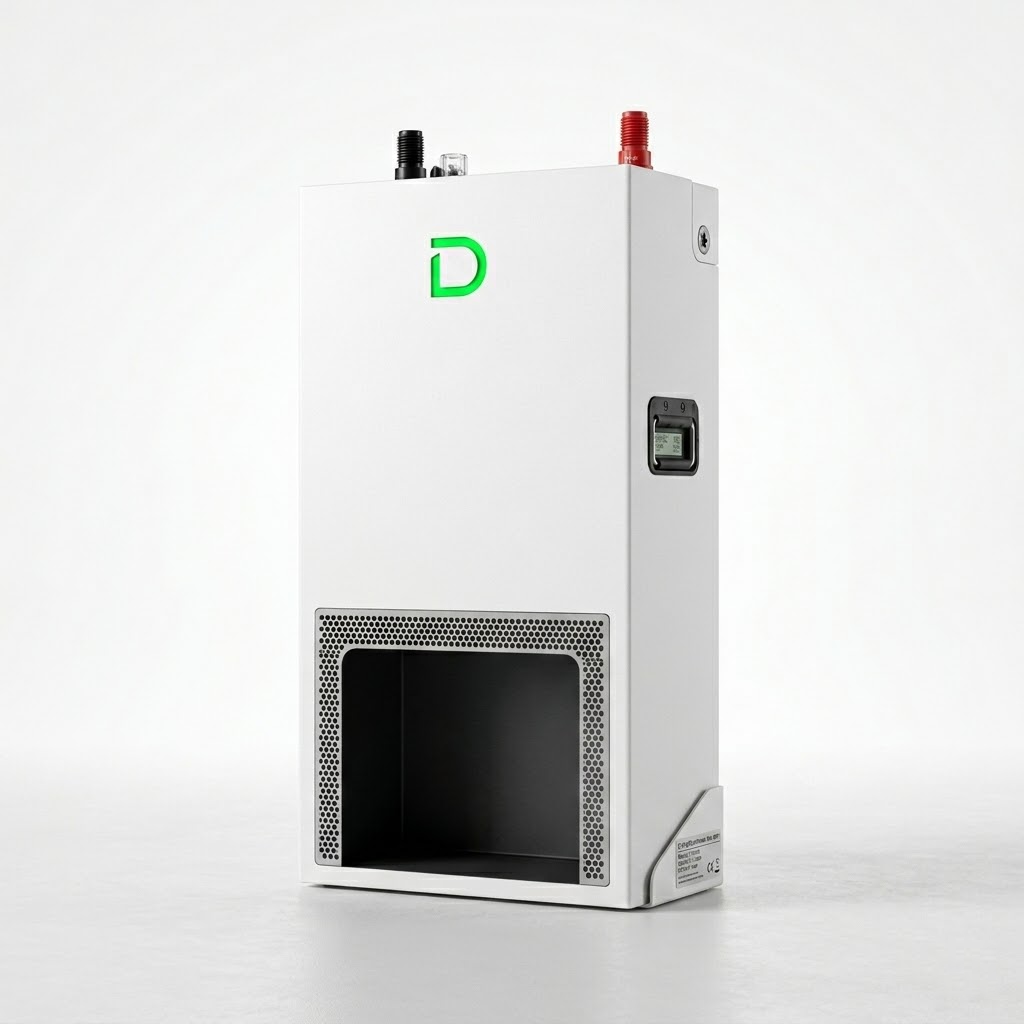

The Dyness PowerBrick SC 16kWh is a premium, all-in-one storage solution designed to simplify large-scale solar installations. Instead of wiring multiple 5kW batteries together, this single unit provides a massive 16.07kWh reservoir, capable of running heavy-duty air conditioning systems, industrial equipment, and entire households for extended durations.

Key Features & Benefits

• Massive 314Ah Capacity: Utilizing high-density cells, it delivers 16.07kWh of energy, making it the ideal choice for high-consumption users in Pakistan.

• Extreme Longevity: Rated for 8,000+ cycles, this battery is designed to last over 15 years with daily use, offering the best long-term value in the market.

• Ultimate Safety: Features a built-in aerosol fire extinguisher that activates within 5 seconds if a thermal anomaly is detected, providing peace of mind for indoor installations.

• Smart Monitoring: Includes a side-mounted LCD status screen and full app support for real-time tracking of charge levels, health, and power flow.

• Scalable Power: Need even more? You can parallel up to 50 units, allowing for massive energy banks reaching over 800kWh.

• Robust Protection: IP20 rated with a comprehensive Intelligent BMS that shields the system from over-current, voltage spikes, and temperature extremes.

Technical Specifications

• Brand: Dyness

• Model: PowerBrick SC

• Nominal Energy: 16.076 kWh

• Nominal Voltage: 51.2V

• Nominal Capacity: 314Ah

• Max Charge/Discharge Current: 200A

• Cycle Life: ≥8,000 Cycles @ 25°C

• Communication: CAN / RS485 / RS232

• Installation: Floor-mounted (Optional wheels available)

• Dimensions: 435 x 233 x 857 mm
